24 Port Gigabit Rack Mount Poe Switch 19 Inch Rack Mounted Gigabit

24 Port Gigabit Rack Mount Poe Switch 19 Inch Rack Mounted Gigabit


24-port gigabit rack-mounted network switch non-managed switch 19-inch rack-mounted gigabit port

Product Description:

    ZT-S1024GDT is a full Gigabit unmanaged Ethernet switch product, providing 24 10/100/1000M RJ45 adaptive ports, supporting wire-speed forwarding on all ports. The product has a highly integrated design, is light and easy to operate, and is suitable for offices in medium and large enterprises. The use of store-and-forward technology, combined with dynamic memory allocation, ensures effective allocation to each port, and at the same time has flow control to ensure that the node avoids data packet loss as much as possible during transmission and reception. Based on the gigabit network technology, the most efficient network transmission neck bottle is avoided, and it has a strong advantage in the use of network resources with high demand, and has good network adaptability. Green Ethernet technology (802.3az) is used to automatically adjust signal strength by detecting cable length and workload, effectively reducing energy consumption and protecting the environment without reducing equipment operating performance and efficiency.

Product Features:

• Comply with IEEE 802.3-2000 standard;
• Conform to IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE802.3at and other Ethernet standards;
• Flow control method: Full duplex adopts IEEE 802.3x standard, half duplex adopts Backpressure standard;
• Store-and-forward architecture;
• 10 10/100M/1000M self-adaptive RJ45 ports, support automatic port flipping (Auto MDI/MDIX);
• UTP port supports auto-negotiation function, automatically adjusts the transmission method and transmission rate;
• 8K MAC address table, MAC address learning;
• Dynamic LED indicator, indicating network working status prompts and troubleshooting;
• Built-in power supply, iron shell structure design, suitable for desktop and rack use.

Model	ZT-S1024GDT

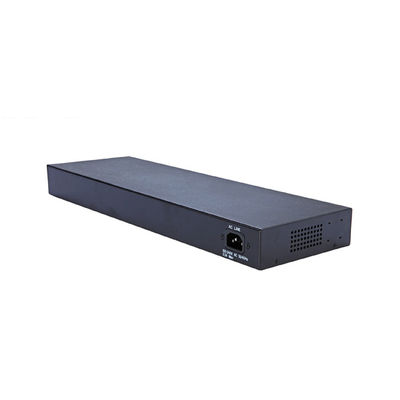

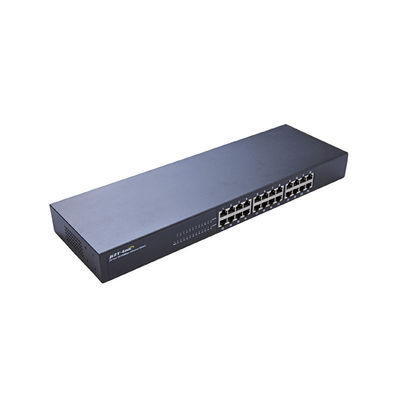

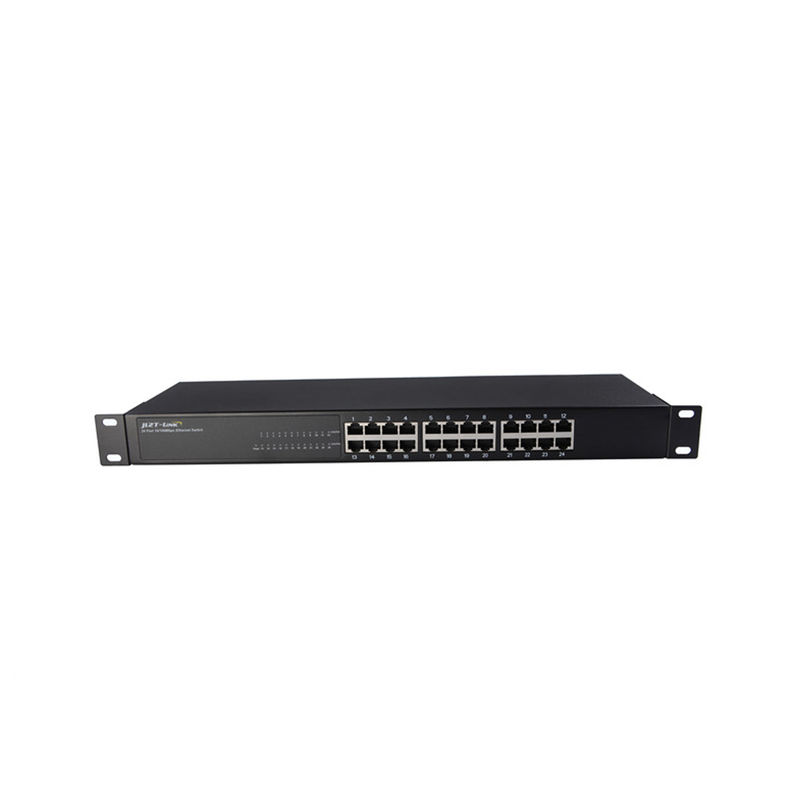

Appearance
Hardware specifications
Chipset	RTL8382L+RTL8218B+RTL8231
Ports	24 10/100/1000M adaptive RJ45 ports (Auto MDI/MDIX)
Supported standards and protocols	IEEE 802.3,IEEE 802.3u,IEEE802.3ab,IEEE802.3x, IEEE802.3az
LED	Power,Link/Act/Speed
Protocol	CSMA/CD
MAC address capacity	16K
Network medium	10Base-T: Category 3 or above UTP 100Base-TX: Category 5 or above UTP 1000Base-T: Super Category 5 UTP
Forwarding rate	10Mbps: 14880pps 100Mbps: 148800pps 1000Mbps: 1488000pps
Backplane bandwidth	52Gbps
Colour	Black
Dimensions                (L x W x H)	440x205x44mm
Net weight	3.35kg
Gross weight	3.75kg
Electrical Specifications
Power input voltage	12V 2A
Maximum power consumption	＜24W
Power plug specifications	Choose according to the destination country
Environmental specifications
Working temperature	0℃～40℃
Working environment humidity	10%～90% RH Non-condensing
Storage temperature	-10℃～70℃
Storage environment humidity	5%～90% RH Non-condensing
Certified product
3C certification	Passed, not certified；
CE certification	Passed, not certified；
FCC certification	Passed, not certified
RoHS certification	Passed, not certified；
Other certifications	No;
