AX3000 Gigabit Dual Band 11ax Wifi Router 3000Mbps High Power Outdoor Router

Certification
China JLZTLink Industry (Shen Zhen) Co.,Ltd. certification
China JLZTLink Industry (Shen Zhen) Co.,Ltd. certification
I'm Online Chat Now

AX3000 Gigabit Dual Band 11ax Wifi Router 3000Mbps High Power Outdoor Router

AX3000 Gigabit Dual Band 11ax Wifi Router 3000Mbps High Power Outdoor Router
AX3000 Gigabit Dual Band 11ax Wifi Router 3000Mbps High Power Outdoor Router

Large Image :  AX3000 Gigabit Dual Band 11ax Wifi Router 3000Mbps High Power Outdoor Router

Product Details:
Place of Origin: China
Brand Name: ODM/OEM
Certification: CE/FCC/RoHS
Model Number: ZT-RG968AX
Payment & Shipping Terms:
Minimum Order Quantity: 5
Price: Negotiable
Packaging Details: Inner packing,20pcs/carton,Inner packing
Delivery Time: 45-55 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100000pcs/month

AX3000 Gigabit Dual Band 11ax Wifi Router 3000Mbps High Power Outdoor Router

Description
Number Of Ports: 5Port Flash: 32Mbyte
SDRam: 512Mbyte Wireless Rate: 3000Mbps
Port Rate: 1Gbps System: Openwrt System/JLZT OS
Warranty: 1year USB: 1*USB3.0
High Light:

Dual Band 11ax Wifi Router

,

AX3000 11ax Wifi Router

,

wifi 6 ax3000 Router

AX3000 Gigabit Dual Band 11ax Wifi Router 3000Mbps High Power Outdoor Router



AX3000 Gigabit dual-band 11ax Wifi router 3000Mbps WiFi6 wireless router 2.4G 5.8G high-power outdoor router



Product Description:

    Based on the latest IEEE802.11ax standard, ZT-RG968AX provides a stable transmission rate of up to 3000Mbps and is backward compatible with IEEE802.11b/g/n/ac. It integrates routers, wireless access points, switches, and firewalls. It provides a very convenient and comprehensive network management function, supports URL filtering and MAC address filtering and other functions, supports QoS bandwidth control function, can effectively allocate the download rate of the client; supports wireless data encryption, which can ensure the safety of data in wireless network transmission .

    ZT-RG968AX has good signal, high transmission rate and stable performance. It is the best choice for families to realize high-speed wireless Internet access.



Product Features:

  • Provide 1 10/100/1000M Ethernet (WAN) interface, which can be connected to XDSL modem/Cable modem/Ethernet/GPON/EPON/XPON;
  • Provide 4 10/100/1000M Ethernet (LAN) interfaces for connection in the local area network;
  • Support 2.4G wireless transmission rate up to 300Mbps, 5.8G wireless transmission rate up to 3000Mbps, with rate adaptive function, automatically adjust wireless transmission rate;
  • The networking mode supports static IP, dynamic IP, PPPOE dialing
  • Support WPA/WPA2, WPA-PSK/WPA2-PSK and other encryption and security mechanisms;
  • Adopt Roaming technology to ensure efficient wireless connection;
  • Built-in network address translation (NAT function, support virtual server, special application and DMZ host;
  • Built-in DHCP server, and static address assignment can be performed at the same time;
  • Support Universal Plug and Play (UPNP), and data that meets the UPNP standard can be passed smoothly;
  • Built-in firewall function, supporting domain name filtering and MAC address filtering;
  • Support QoS bandwidth control function, which can effectively allocate the download rate of the client;
  • Support dynamic DNS function, which can provide domain name service for dynamic IP address;
  • Built-in static routing function, can build special network topology according to needs;
  • Supports access control based on MAC address, which can effectively control the access rights of intranet users;
  • Full English configuration interface, equipped with a simple installation wizard (Wizard).
  • Support computer and mobile phone settings, and self-adaptive design of WEB page on mobile terminal;



Model ZT-RG968AX

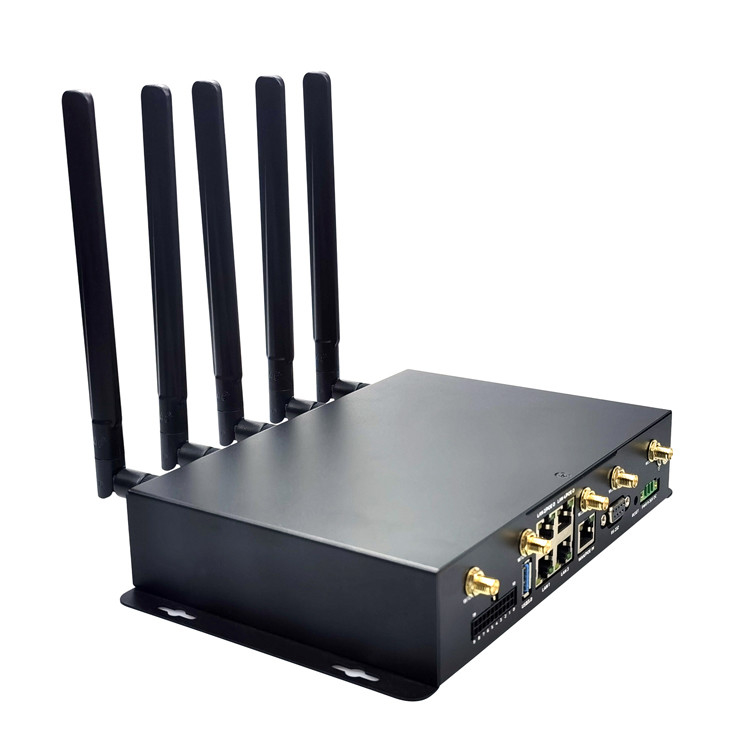

Appearance
Hardware specifications
Chipset MT7622AN+MT7975DN+MT7915DN+MT7905DN
SPI Flash 32Mbyte
SDRam 512Mbyte
Ports WAN: 1 x 10/100/1000 RJ45 Ports(Auto MDI/MDIX)
LAN: 4 x 10/100/1000 RJ45 Ports(Auto MDI/MDIX)
Reset: 1x RESET Key
WPS: 1 x WPS Key
USB:1 x USB3.0
TF Card:
Antenna 8 external 5dBi non-detachable antennas
PA 2.4G: No; 5G: No;
LED Power,Internet,2.4G,5G,WAN,LAN1,LAN2,LAN3,LAN4
Colour Black
Dimensions                (L x W x H) 260*280*32
Net weight 2.15kg
Gross weight 2.35kg
Electrical Specifications
Power input voltage 12V 2A
Maximum power consumption <24W
Power plug specifications Choose according to the destination country
Wireless RF power
  • 11b:18dbm(max)
  • 11g:16dbm(max)
  • 11n:15dbm(max)
  • 11ac:13dbm(max)
  • 11ax:13dbm(max)
Receiving sensitivity
  • 11N_MCS7_20M: -70dBm@10% PER
  • 11N_MCS7_40M: -65dBm@10% PER
  • 54M: -70dBm@10% PER
  • 11M: -85dBm@8% PER
working frequency
  • 2.4 ~ 2.4835GHz
  • 5.15 ~ 5.35GHz
  • 5.47 ~ 5.725GHz
  • 5.725 ~ 5.825GHz
Business specifications
Networking method PPPOE dial-up, static IP, dynamic IP
Operating mode Router mode, access point mode, repeater bridge mode, repeater mode
Port transmission rate 10/100/1000M
Wireless transmission rate

11ax:Up to 3000Mbps;

11ac:Up to 867Mbps(11ac)

11n: Up to 300Mbps

11g: 54/48/36/24/18/12/9/6M

11b: 11/5.5/2/1M

Network protocol: IEEE 802.11n, IEEE 802.11g, IEEE 802.11b, IEEE 802.3, IEEE 802.3u, IEEE 802.11ac,IEEE 802.11ax;
WEB language Englsh
Environmental specifications
Working temperature 0℃~40℃
Working environment humidity 10%~90% RH Non-condensing
Storage temperature -10℃~70℃
Storage environment humidity 5%~90% RH Non-condensing
Certified product
3C certification Passed, not certified;
CE certification Passed, not certified;
FCC certification Passed, not certified
RoHS certification Passed, not certified;
Other certifications No;
