Commercial 4K 10Gbps Unmanaged Ethernet Switch Small Office Switch

Commercial 4K 10Gbps Unmanaged Ethernet Switch Small Office Switch

5-port 100M unmanaged Ethernet switch plastic shell external power supply small office switch

Product Description:

    ZT-SW1005B is a 5-port 10/100M high-speed Ethernet switch. It provides you with desktop-level high-performance Ethernet features. This product provides 5 10/100Mbps adaptive ports, highly integrated design, small, light, simple operation, suitable for small and medium office and home networks. Using store-and-forward technology, combined with dynamic memory allocation, to ensure effective allocation to each port. Flow control ensures that the node avoids data packet loss as much as possible when transmitting and receiving. The LED panel light dynamically displays the power supply and network connection status.

Product Features:

• Comply with IEEE 802.3-2000 standard;
• Conform to IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE802.3at and other Ethernet standards;
• Support IEEE802.3at standard;
• Flow control method: Full duplex adopts IEEE 802.3x standard, half duplex adopts Backpressure standard;
• The single-port power supply supports up to 30W, and the total power consumption can reach 260W;
• Store-and-forward architecture;
• 5 10/100M/1000M self-adaptive RJ45 ports, support automatic port flipping (Auto MDI/MDIX);
• UTP port supports auto-negotiation function, automatically adjusts the transmission method and transmission rate;
• 8K MAC address table, MAC address learning;
• Dynamic LED indicator, indicating network working status prompts and troubleshooting;
• Built-in power supply, iron shell structure design, suitable for desktop and rack use.
• Built-in power supply, iron shell design, suitable for rack installation.

Model	ZT-SW1005B

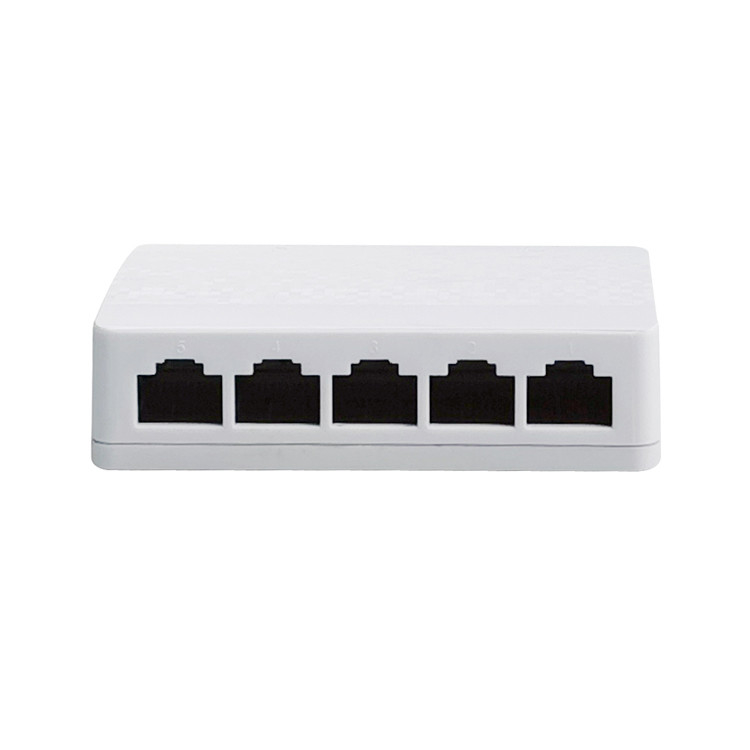

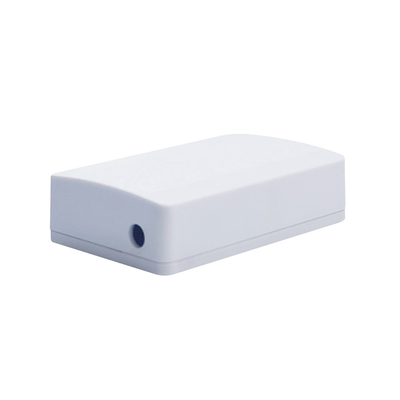

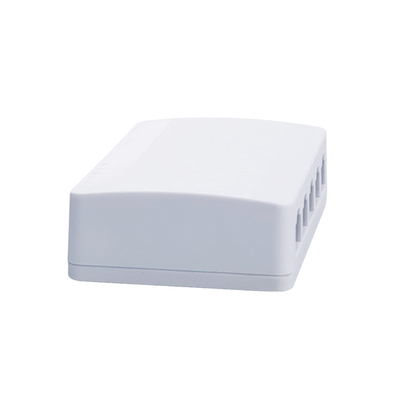

Appearance
Hardware specifications
Chipset	IC+ IP175G
Ports	5 10/100M adaptive RJ45 ports (Auto MDI/MDIX)
Supported standards and protocols	IEEE 802.3,IEEE 802.3u,IEEE 802.3x,802.1q
LED	Power,Internet,LAN1,LAN2,LAN3,LAN4,LAN5
Protocol	CSMA/CD
MAC address capacity	1K
Network medium	10Base-T: Category 3 or above UTP 100Base-TX: Category 5 or above UTP
Forwarding rate	10Mbps:120Kpps 100Mbps:1.2Mpps
Backplane bandwidth	1.6Gbps
Colour	Black
Dimensions                (L x W x H)	200*500*20
Net weight	0.75kg
Gross weight	0.85kg
Electrical Specifications
Power input voltage	5V 1A
Maximum power consumption	＜5W
Power plug specifications	Choose according to the destination country
Environmental specifications
Working temperature	0℃～40℃
Working environment humidity	10%～90% RH Non-condensing
Storage temperature	-10℃～70℃
Storage environment humidity	5%～90% RH Non-condensing
Certified product
3C certification	Passed, not certified；
CE certification	Passed, not certified；
FCC certification	Passed, not certified
RoHS certification	Passed, not certified；
Other certifications	No;
