Dual Frequency 4GB DDR3 5G LTE Wifi Router 4g Lte Router 5ghz

Dual Frequency 4GB DDR3 5G LTE Wifi Router 4g Lte Router 5ghz
Dual Frequency 4GB DDR3 5G LTE Wifi Router 4g Lte Router 5ghz

Large Image :  Dual Frequency 4GB DDR3 5G LTE Wifi Router 4g Lte Router 5ghz

Product Details:
Place of Origin: China
Brand Name: ODM/OEM
Certification: CE/FCC/RoHS
Model Number: ZT-R7625-5G
Payment & Shipping Terms:
Minimum Order Quantity: 5
Price: Negotiable
Packaging Details: Inner packing,20pcs/carton,Inner packing
Delivery Time: 12-18 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 50000pcs/month

Dual Frequency 4GB DDR3 5G LTE Wifi Router 4g Lte Router 5ghz

Description
Number Of Ports: 8Port SDRam: 4GB DDR3
Wireless Frequency: 2.4GHz+5.8GHz Protocol: IEEE802.11n/b/g/ac, IEEE802.3/802.3u
USB: 1*USB2.0 M.2 Socket: Support
SIM Card: Support
High Light:

DDR3 5G LTE Wifi Router

,

DDR3 router lte wifi 5ghz

,

DDR3 4g Lte Router 5ghz

Dual Frequency 4GB DDR3 5G LTE Wifi Router 4g Lte Router 5ghz



Gigabit dual frequency AC1200 WiFi wireless router 4G LTE CPE modem 5G router with SIM card slot



Product Description:

    Based on the latest IEEE802.11n standard, ZT-R7623-5G provides a stable transmission rate of up to 1200Mbps and is backward compatible with IEEE802.11b/g/n. It integrates routers, wireless access points, switches, and firewalls. It provides a very convenient and comprehensive network management function, supports URL filtering and MAC address filtering and other functions, supports QoS bandwidth control function, can effectively allocate the download rate of the client; supports wireless data encryption, which can ensure the safety of data in wireless network transmission .

    ZT-R7623-5G has good signal, high transmission rate and stable performance. It is the best choice for families to realize high-speed wireless Internet access.

    5G communication module access, high-speed access, up to 900M/s, support 5G to WiFi, support 5G to wired;



Product Features:

  • Provide 1 10/100/1000M Ethernet (WAN) interface, which can be connected to XDSL modem/Cable modem/Ethernet/GPON/EPON/XPON;
  • Provide 7 10/100/1000M Ethernet (LAN) interfaces for connection in the local area network;
  • Support 2.4G wireless transmission rate up to 300Mbps, 5.8G wireless transmission rate up to 1200Mbps, with rate adaptive function, automatically adjust wireless transmission rate;
  • The networking mode supports static IP, dynamic IP, PPPOE dialing
  • Support WPA/WPA2, WPA-PSK/WPA2-PSK and other encryption and security mechanisms;
  • Adopt Roaming technology to ensure efficient wireless connection;
  • Built-in network address translation (NAT function, support virtual server, special application and DMZ host;
  • Built-in DHCP server, and static address assignment can be performed at the same time;
  • Support Universal Plug and Play (UPNP), and data that meets the UPNP standard can be passed smoothly;
  • Built-in firewall function, supporting domain name filtering and MAC address filtering;
  • Support QoS bandwidth control function, which can effectively allocate the download rate of the client;
  • Support dynamic DNS function, which can provide domain name service for dynamic IP address;
  • Built-in static routing function, can build special network topology according to needs;
  • Supports access control based on MAC address, which can effectively control the access rights of intranet users;
  • Full English configuration interface, equipped with a simple installation wizard (Wizard).
  • Support computer and mobile phone settings, and self-adaptive design of WEB page on mobile terminal;



Model ZT-R7623-5G

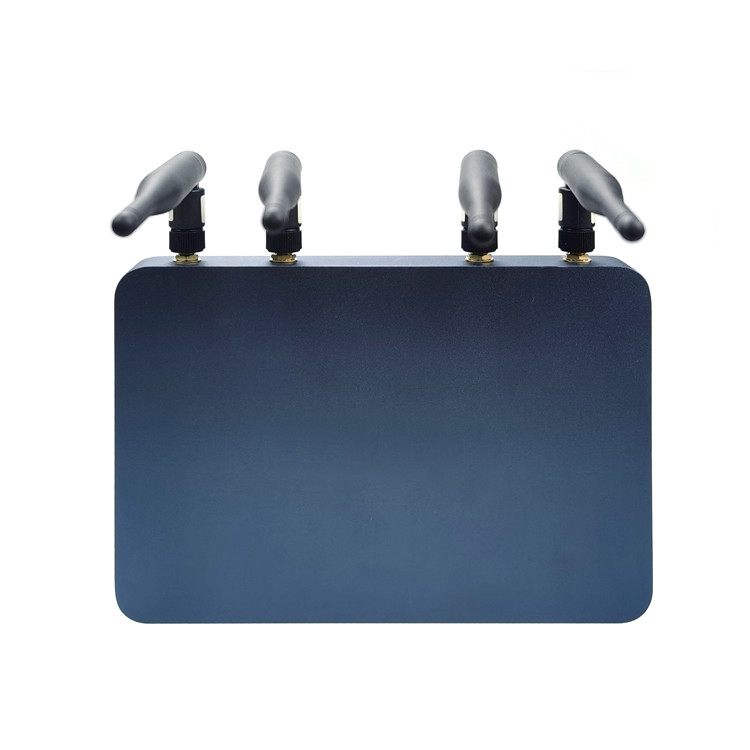

Appearance
Hardware specifications
Chipset MT7623A
SPI Flash 8GB
SDRam 4GB
Ports WAN: 1 x 10/100/1000M RJ45 Ports(Auto MDI/MDIX)
LAN: 7 x 10/100/1000 RJ45 Ports(Auto MDI/MDIX)
Reset: 1x RESET Key
USB:1 x USB2.0;
SIM Card:1 x SIM Card
Antenna 8 external 5dBi non-detachable antennas
PA 2.4G: No; 5G: SKY85735-11
LED Power,Internet,2.4G,5G,WAN,LAN1,LAN2,LAN3,LAN4,LAN5,LAN6,LAN7,LAN8
Colour Black
Dimensions                (L x W x H) 200*500*20
Net weight 1.15kg
Gross weight 1.25kg
Electrical Specifications
Power input voltage 12V 2A
Maximum power consumption <24W
Power plug specifications Choose according to the destination country
Wireless RF power
  • 11b:18dbm(max)
  • 11g:16dbm(max)
  • 11n:15dbm(max)
  • 11ac:13dbm(max)
Receiving sensitivity
  • 11N_MCS7_20M: -70dBm@10% PER
  • 11N_MCS7_40M: -65dBm@10% PER
  • 54M: -70dBm@10% PER
  • 11M: -85dBm@8% PER
working frequency
  • 2.4 ~ 2.4835GHz
  • 5.15 ~ 5.35GHz
  • 5.47 ~ 5.725GHz
  • 5.725 ~ 5.825GHz
Business specifications
Networking method PPPOE dial-up, static IP, dynamic IP
Operating mode Router mode, access point mode, repeater bridge mode, repeater mode
Port transmission rate 10/100/1000M
Wireless transmission rate

11ac:Up to 867Mbps(11ac)

11n: Up to 300Mbps

11g: 54/48/36/24/18/12/9/6M

11b: 11/5.5/2/1M

Network protocol: IEEE 802.11n, IEEE 802.11g, IEEE 802.11b, IEEE 802.3, IEEE 802.3u, IEEE 802.11ac
WEB language Englsh
Environmental specifications
Working temperature 0℃~40℃
Working environment humidity 10%~90% RH Non-condensing
Storage temperature -10℃~70℃
Storage environment humidity 5%~90% RH Non-condensing
Certified product
3C certification Passed, not certified;
CE certification Passed, not certified;
FCC certification Passed, not certified
RoHS certification Passed, not certified;
Other certifications No
